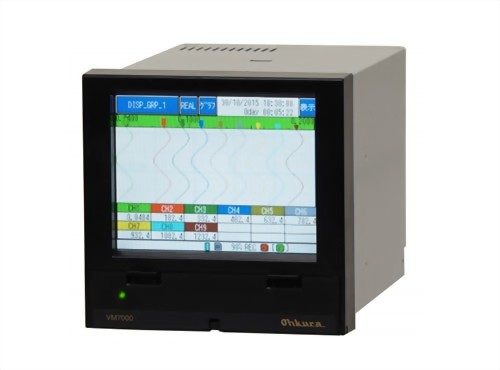

VM7000B

Easy Operation by Touch Panel, 5.7inch TFT
High quality Metal Case
Switching included
Model : VM7000B

SPECIFICATIONS

 VM 7000B

No. of points

36912 points

Measuring cycles

100ms

Input signal

ThermocoupleKEJTCNPL IIULRSBPR 40 - 20Au - Fe

Resistance bulbPt 100JPt 100

DC Voltage-10+10mV020mV050mV-0.2+0.2V-1+1V -10V+10V05V

DC current4-20mA (External shunt resistance)

Indication accuracy

±(0.1%+1digit) of input range

NMRR

60 dB Max50/60 Hz

CMRR

140 dBMax50/60 Hz

LCD

5.7inch TFTQVGATouching Panel

Display contents

•Trend display (in vertical and horizontal direction)

•Historical trend display

•Bar graph (refresh cycle: 1 second)

•Digital display (refresh cycle: 1 second)

Internal memory

About 100MB

Recording medium

SD card (Max 2GB) SDHC card (Max 32GB)

Data save cycles

1 Hour to 1 Year

Alarm Output

Number of points; 1 (open collector)

Number of Alarm settings

Up to 4 alarms for each channel are settable

Communication

Ethernet 10BASE-T (HTTP server, FTP server, and Modbus/TCP protocol)

Power supply voltage

100-240 V AC50/60 Hz

Power consumption

15VA Max.at 100V AC, 25VA Max.at 240V AC

Mounting Method

Panel-mounted

Material

Case: Metal, Display: 10% Polycarbonate, UL 94 - V 0black

Weight

2.0kg

Operation environment

0-50°C, 20-80RH

  • Improved durability

The device's durability has been improved by employing a metallic case.



  • Equipped with its own power switch

The device is provided with a power switch on its rear face so that separate inspections can be performed easily.
