NTC Thermistor Temperature Sensor - Fast Response, Screw Mount

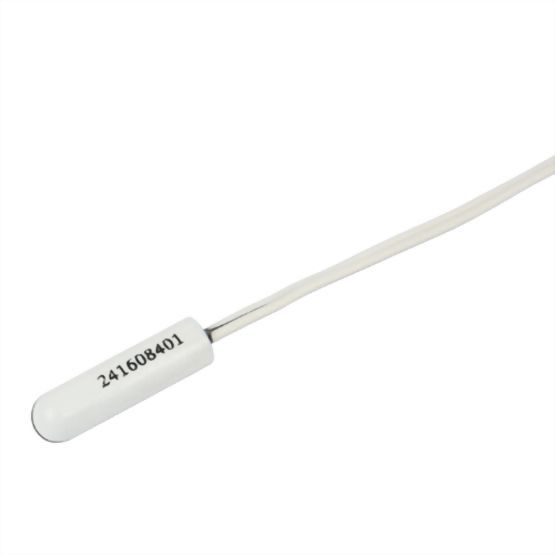

The 12J series is a lead-wired temperature measurement sensor with an epoxy-filled plastic shell. Designed for use in refrigeration, cold storage and other high-humidity environments, it can also be used successfully in general-purpose applications. UL recognized models available upon request.
Model :
12J
DESCRIPTION
12J NTC Thermistor Temperature Sensors from Therm-O-Disc® offer excellent reliability in a compact, rugged, cost-effective design. The 12J is also a proven performer for moisture protection and freeze-thaw cycling. Lead wires can be set to any length and color to match your requirements. The plastic shell can be made from PP, PBT, PPS, or almost any plastic that you need for your application. The internal thermistor element can be selected to meet any resistance-temperature curve and tolerance. The 12J is used in temperature monitoring in a wide range of applications, including air conditioners, refrigeration systems, heat pumps, and industrial processing systems.
SPECIFICATIONS
- Operating Temperature Range: -40°C to 80°C and up to 105°C (dependent on wire rating)
- Insulation Strength: 3750 V AC/0.5 mA/2 Seconds for a small diameter body (inquire for alternate values)
- Accuracy: 1°C typical (inquire for alternatives)
- Thermal Time Constant in Air 11 seconds typical (varies with design)
FEATURES
- Ambient temperature sensing
- Custom body lengths, diameters and application-specific shapes are available
- Excellent moisture and freeze-thaw resistance
- Lead wire length and color to customer specification
- Lead wires can be terminated with customer-specified terminals or connectors
APPLICATIONS
- Refrigeration systems
- Freezer compartments
- Floor Heating
- Heat pumps
- Boilers
- Ambient temperature sensing
