NTC Thermistor Temperature Sensor - Screw or Clip Mount

HVAC
Model : 36J

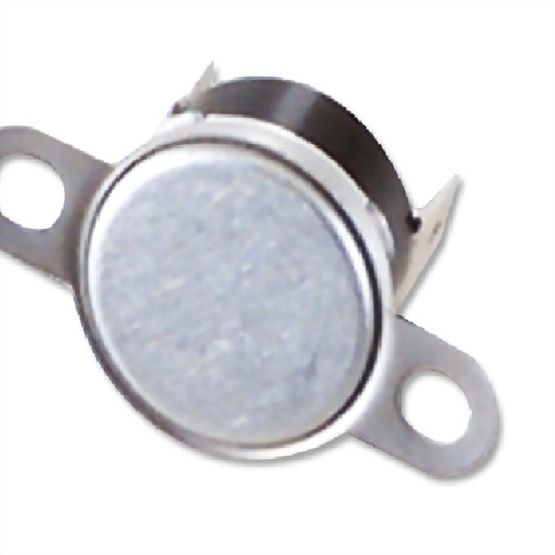

36J NTC Thermistor Temperature Sensors from Therm-O-Disc® offer the electronic advantages of a thermistor in the time-honored and versatile packaging of Therm-O-Disc’s® 36T series. The thermistor element can be selected to meet any resistance-temperature curve and tolerance. The 36J is used in several applications including clothes dryers, ventilation systems, coffee makers, dishwashers, HVAC systems, and many other applications.

  • Operating Temperature Range: -40°C up to 200°C (inquire for alternate values)
  • Accuracy: 1°C typical (inquire for alternatives)
  • Thermal Time Constant: 3-11 seconds typical in air to hot plate (25°C to 85°C) dependant on design

  • 11, 13, 15, 18 and 22mm pipe diameter clips available for Tube Mount body option
  • 2.8 & 6.35 mm quick-connector terminal blades for fast wiring or molded-in connector options
  • No mount, Tube Mount, Airstream Mount, Surface Mount and Wide Flange Mount options are available as standard. Others upon request.
  • PPS plastic bodies with stainless steel or aluminum caps standard with other materials available

  1. Boiler Heating Systems
  2. Storage Water Heaters
  3. General fast response applications
  4. Small Appliances
