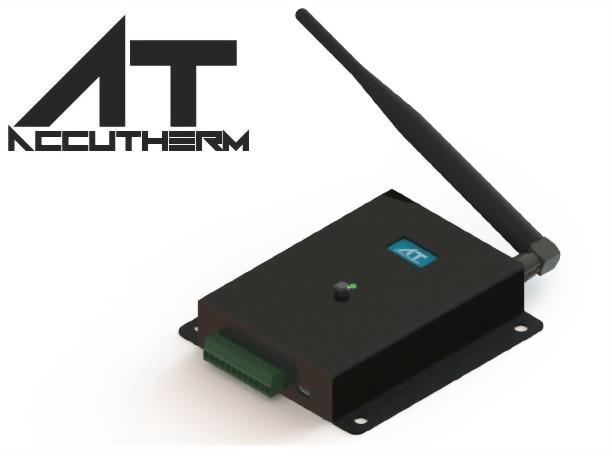

LSN18-AccuIOT Lora Module

Accutherm's LoRa wireless sensors provide ultra long range to industry standard gateways.
Model : LSN18-AccuIOT Lora Module

A Accutherm innovation, LoRa devices offer compelling features for IoT applications including long range, low power consumption and secure data transmission. The technology can be utilized by public, private or hybrid networks and provides greater range than Cellular networks. Deployments can easily integrate into existing infrastructure and enable low-cost battery-operated IoT applications. Accutherm's LoRa chipsets are incorporated into devices manufactured by a large ecosystem of IoT solution providers, and connected to networks around the globe. Simply stated, LoRa connects devices to the Cloud, providing a "voice" to things — making the world a better place to live, work and play.


Power

Internal (2) 1.5V AA batteries

External Input 5 VDC Voltage (micro USB connector)

Mechanical

Physical Connection pluggable Connector,

Sensor Inputs Analog Input (0 ~ 5 VDC, 0 ~ 10 VDC, 4 ~ 20 mA),

Digital Input(Dry contact), Integrated Temperature, Thermocouple K Type, PT100, NTC Digital Output (0 ~ 30 VDC)

External Antenna SMA, Omnidirectional, 3 dBi, 900~922MHz, Dimensions 123 mm Option Enclosure IP67-rated,ABS

Weight 0.75 lbs (0.34 kg)

Technology

Wireless LoRa Private 868/915MHz

Environmental

Installation Indoor or outdoor Operating Temperature -20 to 70 °C

Storage Temperature -40 to 70 °C

Operating Humidity 0 to 90% Non-condensing

Analog Input

Input ranges0 ~ 5 VDC, 0 ~ 10 VDC, 4 ~ 20 mA

Resolution 16 bit

Accuracy Voltage: 0.10% of full scale reading, 0.20% max. Current: 0.1% of full scale reading, 0.2% max.

Thermocouple Input

Types Supported K

Ranges Supported Type K -270 to +1,372 °C Resolution 0.1 °C

Accuracy     +/- 0.2 %

PT100 Input

Ranges Supported : -200 ~850C Resolution 0.1 °C

Accuracy     +/- 0.2 %

NTC Input

Ranges Supported : -40 ~120C Resolution 0.1 °C

Accuracy     +/- 0.2 %

Digital Inputs

Dry contact

Low : close to GND

High : Open

Digital Outputs

(Relay output)

Contact rating     0.5A/125 VAC, 2A/30VDC Output Type –  relay output

RS485 communication enable


●Long Range Wide Area IoT application
● Low power consumption for battery power applications
● LoRa Private protocol for closing system application
● IP67 waterproof case available
● Connect to industry standard analog or digital sensors
  1. Agriculture
  2. Pharmaceutical & Food
  3. Smart City
