nSens-HT-EIS (high accuracy)
Digital Humidity & Temperature measurement with Electrolytic Humidity & NTC Temperature Sensor.

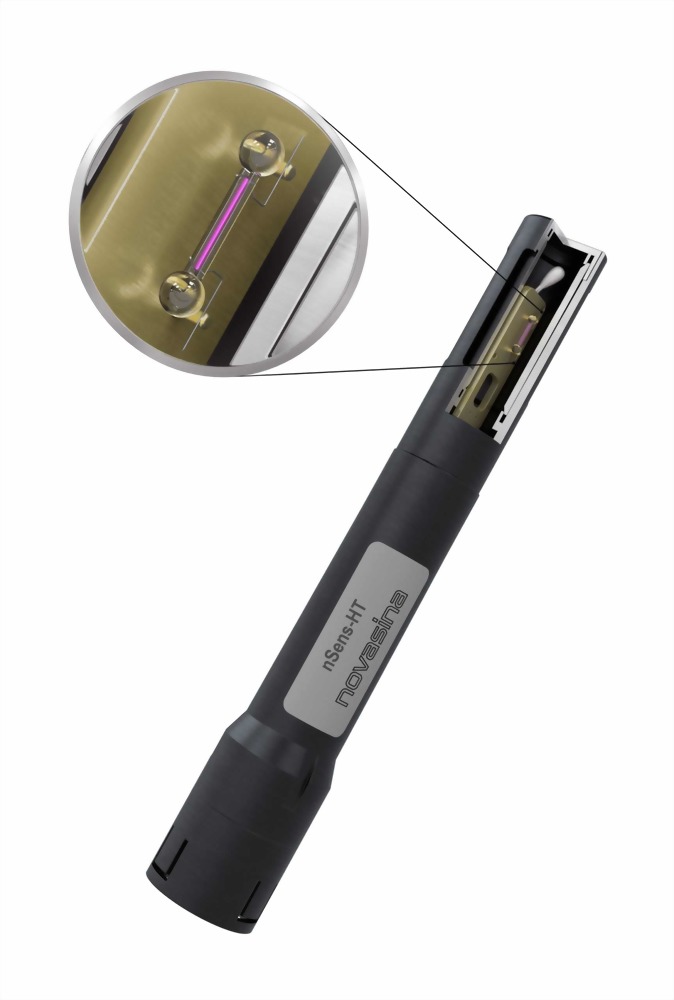

Highest accuracy and long term stability due to Electrolytic-resistive measurement technology.
Ideal for all humidity applications cleanrooms, climate chambers, storage etc: Drift-free, high accuracy measurement
Highest accuracy and long term stability due to Electrolytic-resistive measurement technology.
Ideal for all humidity applications cleanrooms, climate chambers, storage etc: Drift-free, high accuracy measurement
Model :
nSens-HT-EIS (high accuracy)
| Art-No: | 260 1803 | |
| Measuring parameters: | Humidity | Temperature |
| Measuring range: | 0…100% rH | -20°…+80°C |
| Measuring accuracy: | +/-0.4% (typ) | +/-0.1K |
| Calibration: | 13 points complete measuring range | 2 points complete measuring range |
nSens cable for connection to nLink+ IP transmitter:
- nSens cable extension 2m Art-No: 260 1201
- nSens cable extension 5m Art-No: 260 1136
- nSens cable extension 10m Art-No: 260 1986
- nSens cable extension 30m Art-No: 260 1987
nSens cable for connection to nLink+ EC transmitter:
- nSens cable 5m Art-No: 260 1080
- nSens cable 10m Art-No: 260 1079
- nSens cable 30m Art-No: 260 1078
- nSens cable 60m Art-No: 260 1225
- nSens cable 100m Art-No: 260 1226
Configuration:
- Configuration cable nlink-USB Art-No: 260 1818
- nlink-USB-Pro (USB handle with USB-A) for multi sensor calibration and data logging Art-No: 260 1945
- nlink-USB-Smart (USB handle with USB-C) Art-No: 260 1958
- Fastest response in measuring range 0 – 100 % rH
- Drift-free measurement
- Highest accuracy (+/- 0.4 %) and reproducibility
- Insensitive to volatile components (NH3, H2O2 etc.)
- Calibration data and serial number stored directly on the nSens.
- The sensor is pluggable and can be exchanged quickly and easily.
- Compatible with all nlink-transmittters and nSens cables.
- Includes factory calibration certificate
