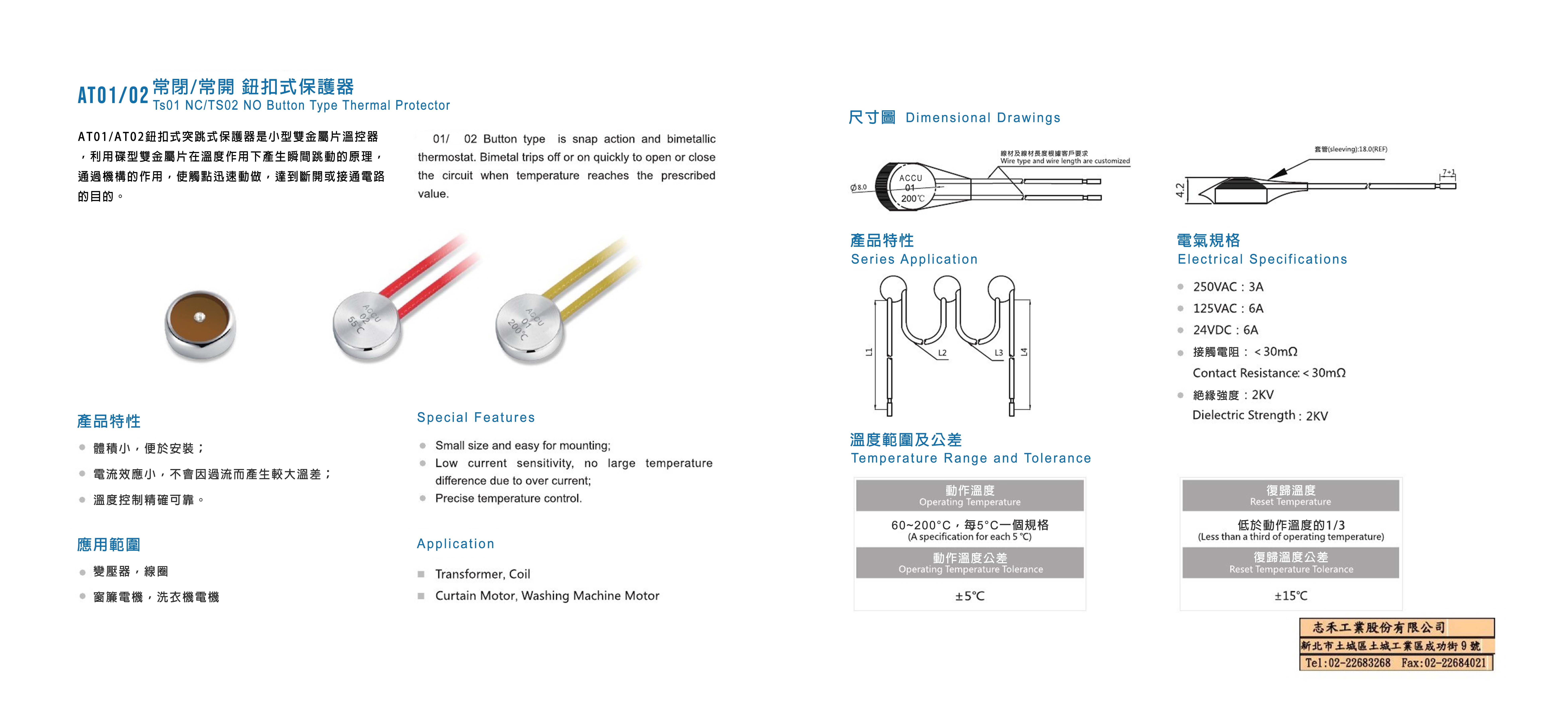

NC Button Type Thermal Protector

TS01 Button Type is a snap action and bimetallic thermostat. Bimetal tripsoff or on quickly to open or close the circuit when temperature reaches the prescribed value.

Model : AT01

Q'ty :

Specifications
Features

Specifications
Model	AT01
Operating Temperature	60~200°C (A specification for each 5°C)
Tolerance	+/-5°C
Reset Temperature	Less than a third of operating temperature
Wire Type	20awg 1332 Teflon wire
Wire Length	Customer customized
Electrical Specifications	125V 6A / 250V 3A
Product Life	30,000 times
Contact resistance	<50mΩ
Dielectric strength	2Kv
Application	Transformer, Coil, Heating tape products
Certifications	UL
