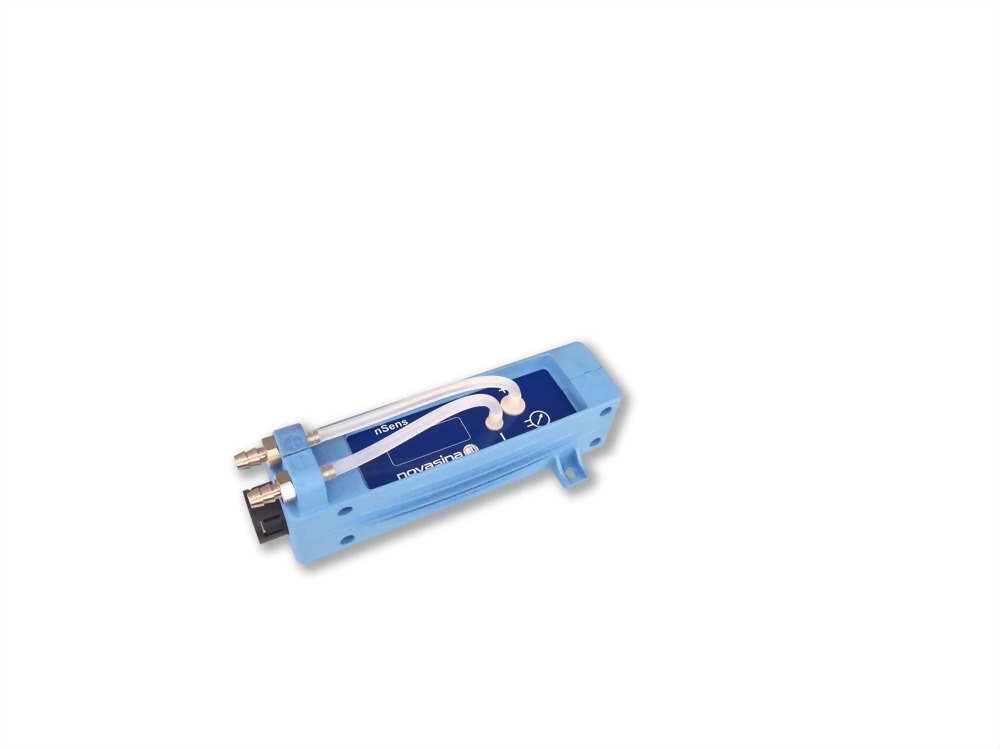

nSens-DP
Digital differential pressure sensor for ambient air condition.
Model :
nSens-DP
| Designation: | nSens-DP-AE | nSens-DP-BE | nSens-DP-CE |
| Art-No: | 260 2186 | 260 2187 | 260 2188 |
| Measuring parameter: | Differential pressure | ||
| Measuring range: | +/-25Pa | +/-250Pa | +/-5000Pa |
| Measuring accuracy: | +/-0.15% (at 20°C) | +/- 0.25% (at 20°C) | +/- 1% (at 20°C) |
nSens cable for connection to nLink+ IP transmitter:
- nSens cable extension 2m Art-No: 260 1201
- nSens cable extension 5m Art-No: 260 1136
- nSens cable extension 10m Art-No: 260 1986
- nSens cable extension 30m Art-No: 260 1987
nSens cable for connection to nLink+ EC transmitter:
- nSens cable 5m Art-No: 260 1080
- nSens cable 10m Art-No: 260 1079
- nSens cable 30m Art-No: 260 1078
- nSens cable 60m Art-No: 260 1225
- nSens cable 100m Art-No: 260 1226
Configuration & Mounting:
- Configuration cable nlink-USB Art-No: 260 1818
- Wall mount / din rail mount Art-No: 260 2053
- Calibration data and serial number stored directly on the nSens.
- The sensor is pluggable and can be exchanged quickly and easily.
- Compatible with all nlink-transmittters and nSens cables.
- Does not require additional power supply
