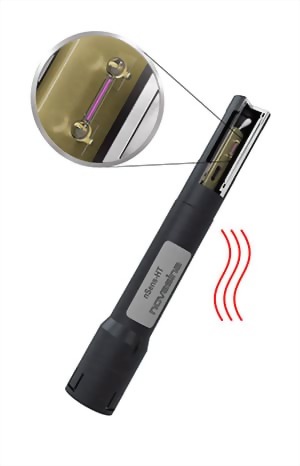

nSens-HT-EIH (heated, high accuracy)
Heated Humidity Sensor for condensing environment.
Digital humidity & temperature sensor with heated, electrolytic humidity sensor & NTC temperature measurement.
Ideal for high humidity applications (75-100%) for drift-free, high accuracy measurement
Digital humidity & temperature sensor with heated, electrolytic humidity sensor & NTC temperature measurement.
Ideal for high humidity applications (75-100%) for drift-free, high accuracy measurement
Model :
nsens-ht-eih-heated-high-accuracy
| Art-No: | 260 1933 | |
| Measuring parameters: | Humidity | Temperature |
| Measuring range: | 0…100% rH | -20°…+60°C |
| Measuring accuracy: | +/-0.8% (typ) | +/-0.2K |
| Calibration: | 13 points complete measuring range | 2 points complete measuring range |
nSens cable for connection to nLink+ IP transmitter:
- nSens cable extension 2m Art-No: 260 1201
- nSens cable extension 5m Art-No: 260 1136
- nSens cable extension 10m Art-No: 260 1986
- nSens cable extension 30m Art-No: 260 1987
nSens cable for connection to nLink+ EC transmitter:
- nSens cable 5m Art-No: 260 1080
- nSens cable 10m Art-No: 260 1079
- nSens cable 30m Art-No: 260 1078
- nSens cable 60m Art-No: 260 1225
- nSens cable 100m Art-No: 260 1226
Configuration:
- Fastest response in measuring range 0 – 100 % rH
- Drift-free measurement
- Insensitive to volatile components (NH3, H2O2 etc.)
- Calibration data and serial number stored directly on the nSens.
- The sensor is pluggable and can be exchanged quickly and easily.
- Compatible with all nlink-transmittters and nSens cables.
- Includes factory calibration certificate
