Versatile, multipurpose creep action thermostats/thermal protectors for temperature control and sensing applications.  Available with gold-diffused contacts for exceptionally low contact resistance in critical low-voltage/low current circuits.

Contact Ratings

6 amps 120 VAC resistive

5 amps 120 VAC inductive

6 amps 12 VDC resistive

4 amps 24 VDC resistive

Calibration Range

Available with nominal calibration temperatures from 5°C to 200°C.

Standard Marking System

UL Recognition

CSA Certifications

• Conductive bimetal construction; the bimetallic element carries the circuit current.
• No built-in differential between the opening and closing temperature.
• Case electrically alive; insulating sleeving is available.
• Preset calibration temperature; not adjustable in the field.

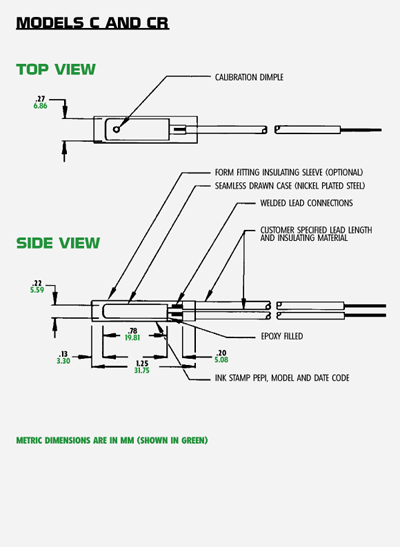

• Available to open circuit on rise of temperature (normally closed), Model C; or close circuit on rise of temperature (normally open), Model CR.
• Available with gold diffused, fine silver contacts for use in low voltage/low current applications.                   -C and -CH versions without gold diffused contacts.                                                                                       -CH and CH versions for use 130°C to 200°C.

• Wiper heater
