Model : AT100

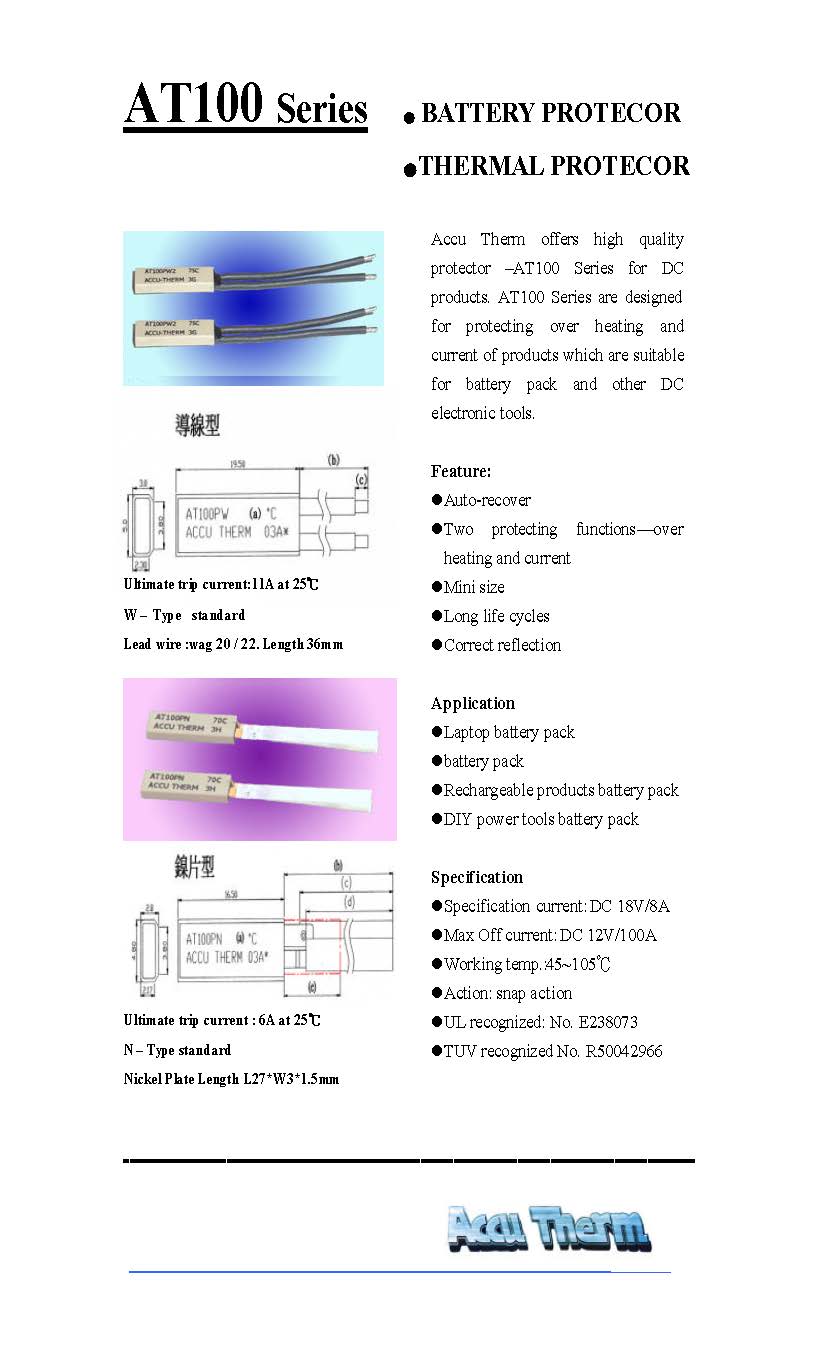

The Model AT100 Series snap action thermal protectors feature a shunted design so the bimetallic element does not carry the circuit current, enabling this Bimetal Thermostat to carry larger currents than the conductive thermal protectors. The ultra-small, low-profile cases meet tighter space requirements of smaller battery packs and small DC motors. Three different models feature different lead configurations to meet the needs of many applications.

Contact Ratings

8 AMPS/18 VDC

3 AMPS/24 VDC

Maximum Breaking Current: 100 AMPS/12 VDC

These ratings are applicable for 6,000 and 10,000 cycles



Certificate

UL File No. 873 E37151

TUV R50042966

EN 60730-2-9: 2002

EN 60730-1



Calibration Range

Available from 40°C to 100°C in 5°C increments with a standard Tolerance of ± 5°C to ± 10°C

Reset temperature approximately 30 to 35% lower than the opening temperature



Standard Configuration

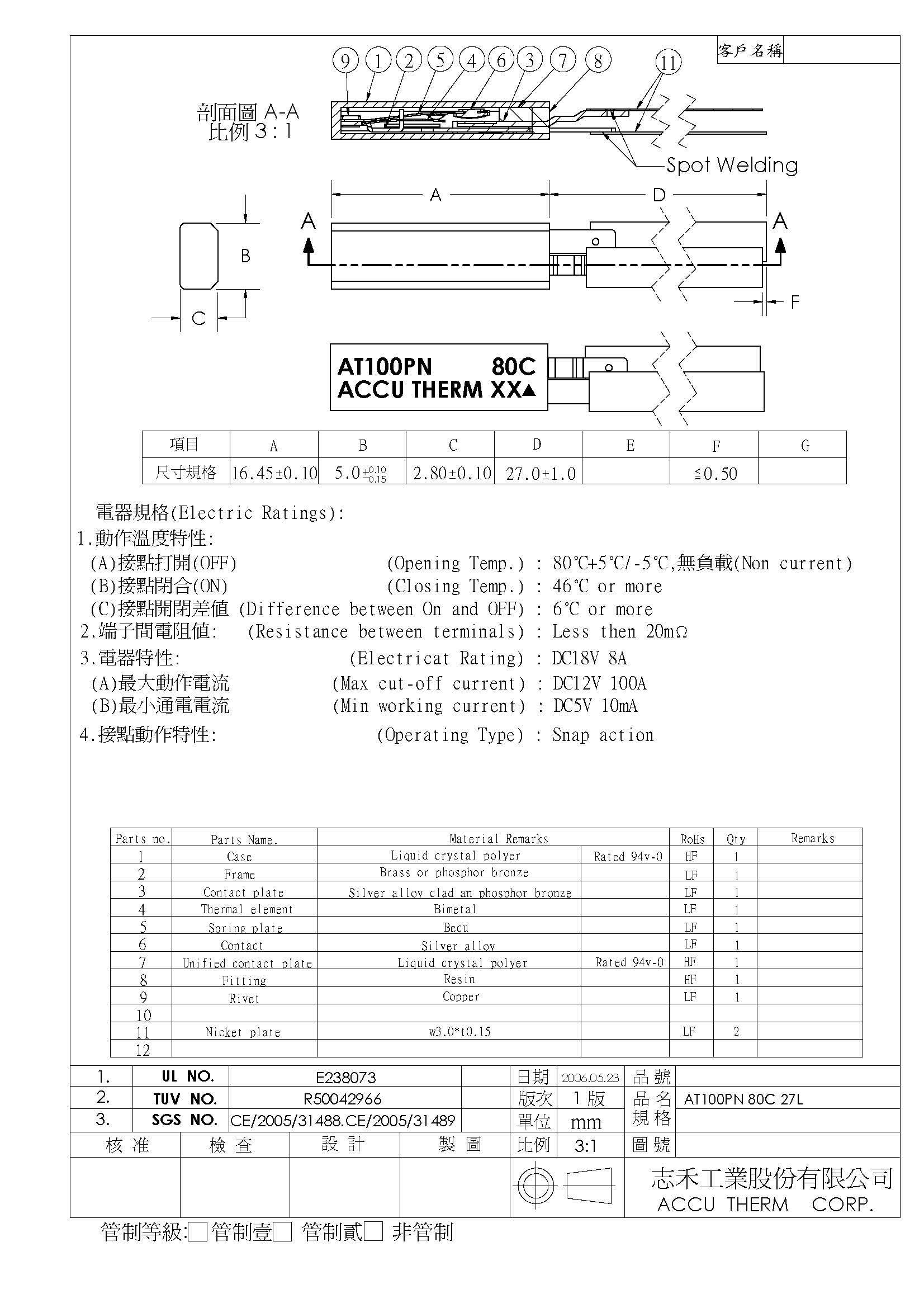

Model AT100-PN is available with customer specified length of Nickel strips leads and heat shrink insulation over welded lead connections

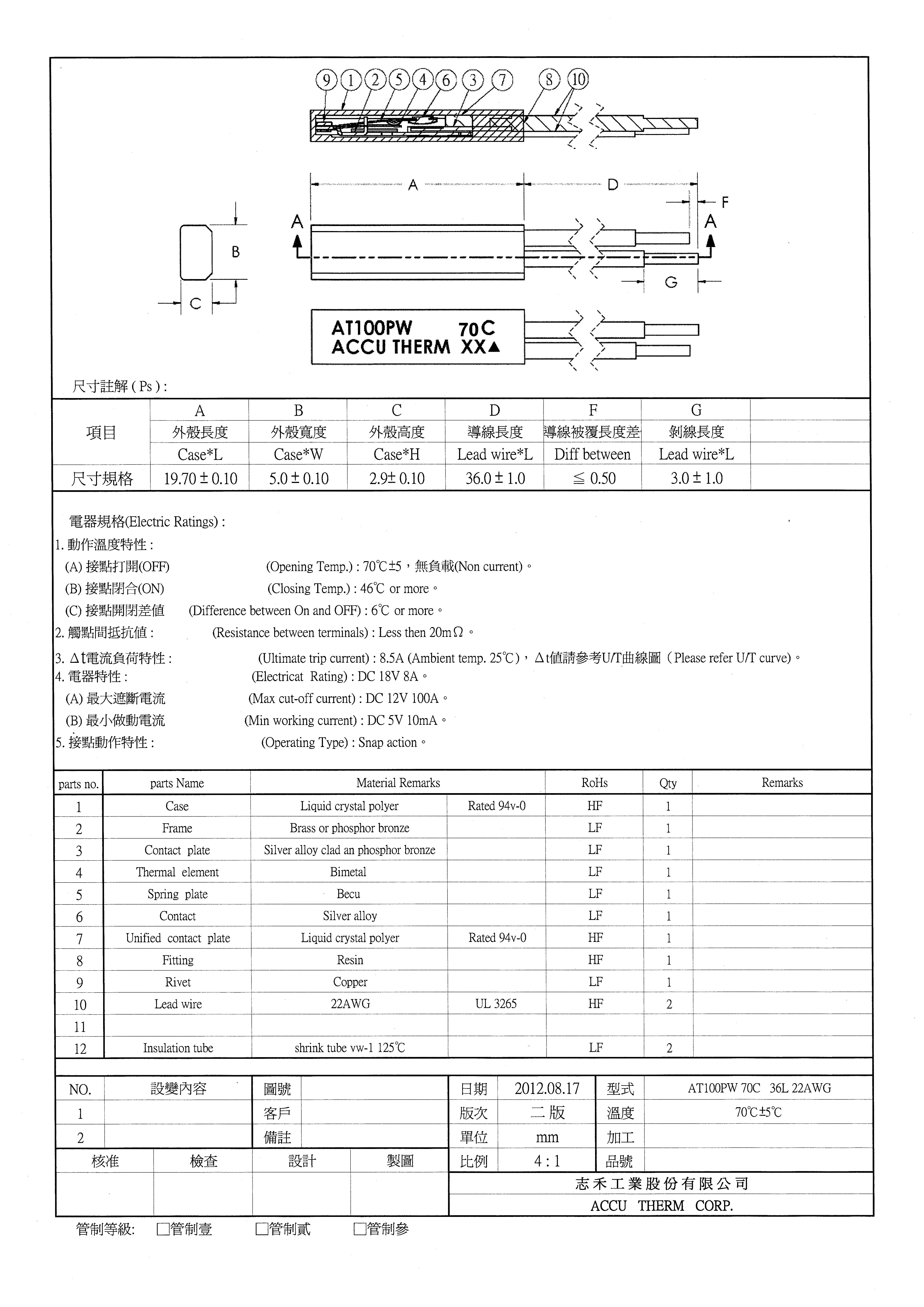

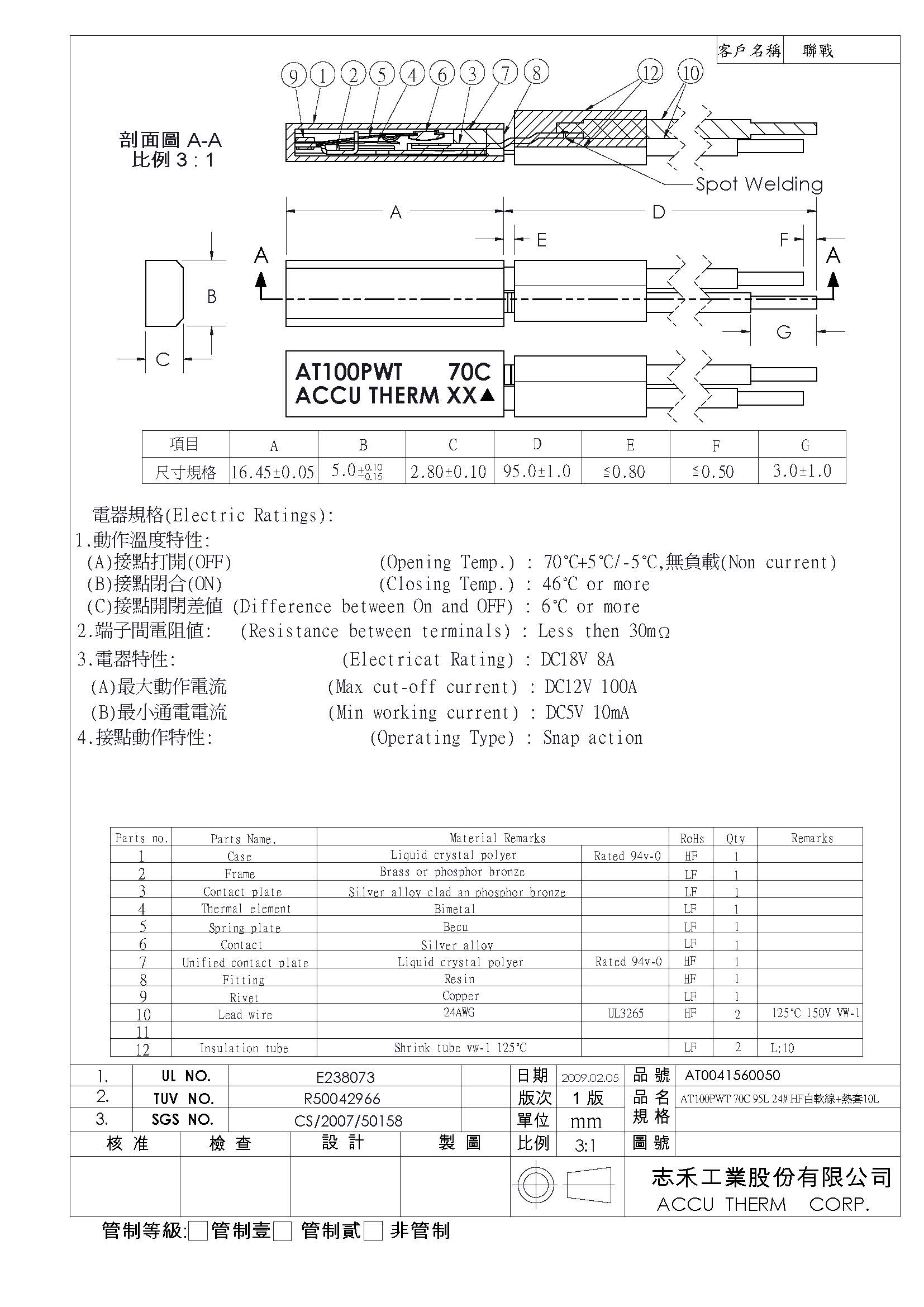

Model AT100-PW is available with UL 3265 XLPE insulated lead wire

Model AT100-PT is available with without lead wires



Other configurations available, please contact us for further information




  • Snap-action design, quick break/quick make switching action.
  • Ultra compact design with a high switching contact rating.
  • Shunted design: Bimetallic element does not carry current. Device makes or breaks circuit primarily based on temperature. This results in reducing the internal heating effect of the device when used in applications with higher current loads.
  • Automatically resets as ambient temperature falls below the calibration set point.
  • Plastic case is electrically isolated from the circuit.
  • Preset calibration temperature; not adjustable in the field.







  1. Battery Packs
  2. Small DC Motors
  3. Electronic Circuit Protection
